Early Idea of the Drawing Instruments

November 23, 2011
Drawing instruments
1 Comment

Early Drawing Instrument Drawing (Nat Chard)

An early drawing of the drawing instruments when I was working on the chassis that eventually supported instruments One, Two and Three. The instrument was designed to hold a Czech made bell jar. I will post a picture of one of these chassis with the intended glass dome. I subsequently chose 18th c. French domes that were larger and lighter (as you see on Instruments Two and Three and will be incorporated in the current instruments) and later from second hand clocks.

The instruments at this stage work between a vertical drawing on the wall and a horizontal one on the table. The observer can work with the vertical drawing through a headset fixed to a bracket on the wall. At this stage the folding picture plane is separated from the drawing instrument chassis.

At the time I was milling out the patterns for the instrument and the drawing was made as an illustration to show a group of colleagues (in a discussion group) what the pieces might look like when assembled. The characters and their condition were related to a story known to some of those in the group.

Peepshow Ladders Part Two

November 12, 2011
Peepshow
Leave a comment

Mk.1 Ladder (Nat Chard)

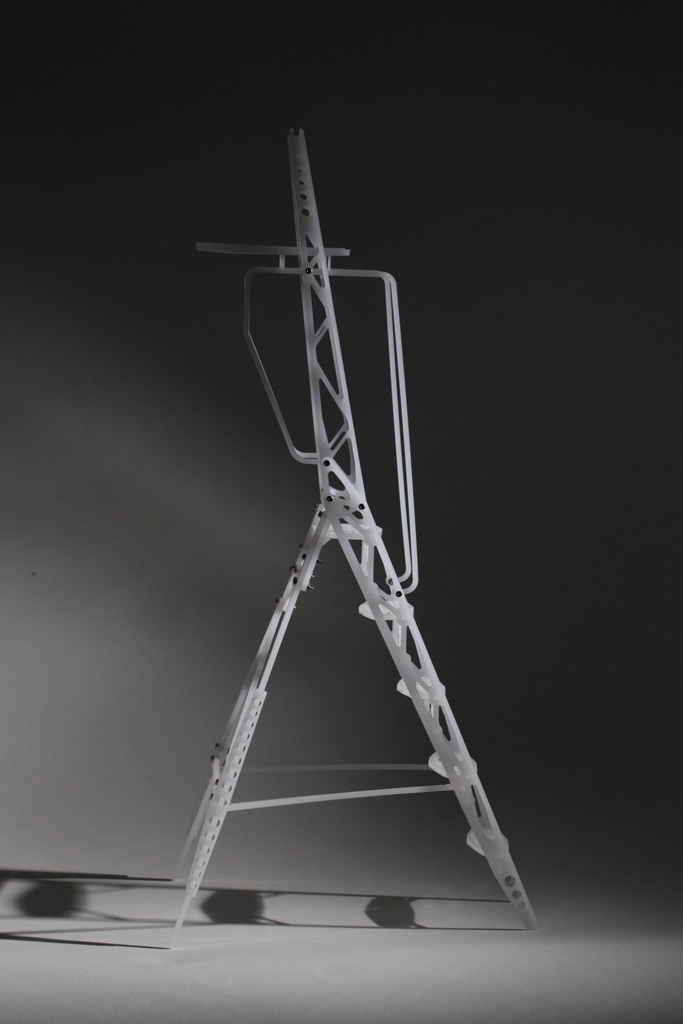

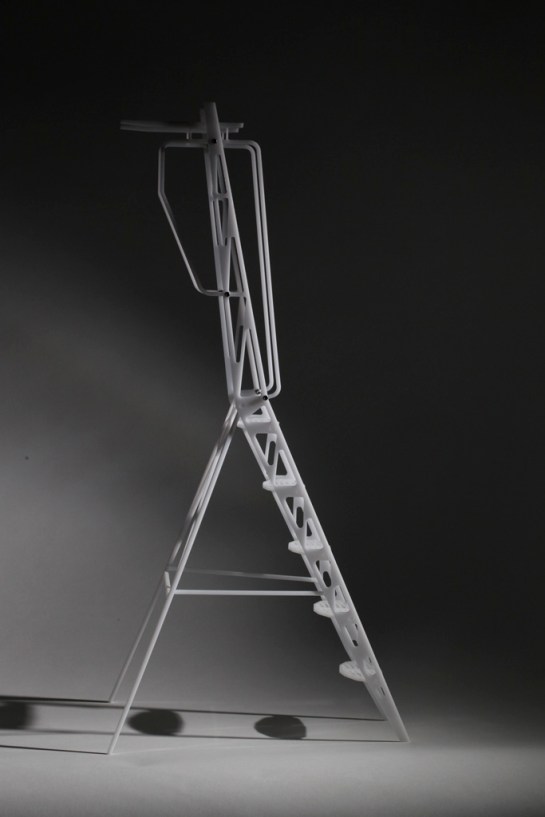

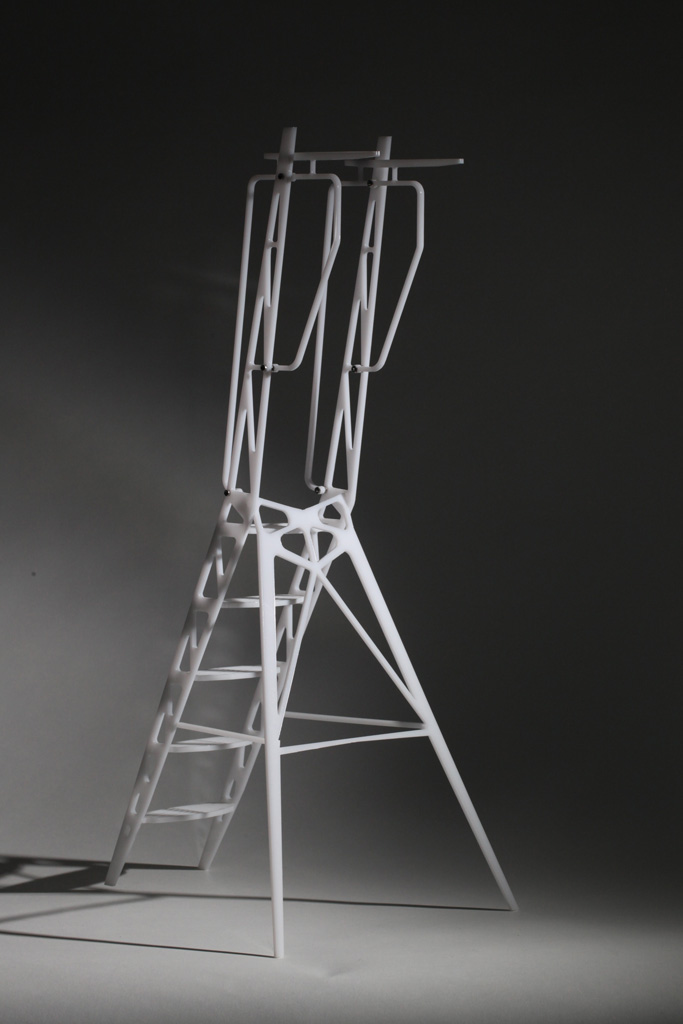

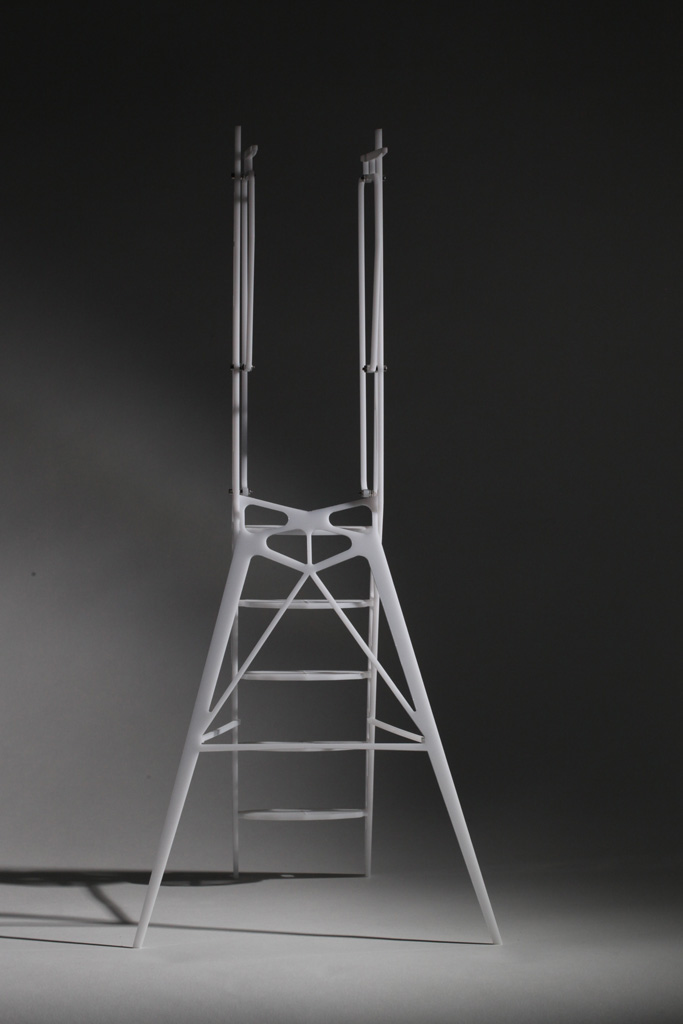

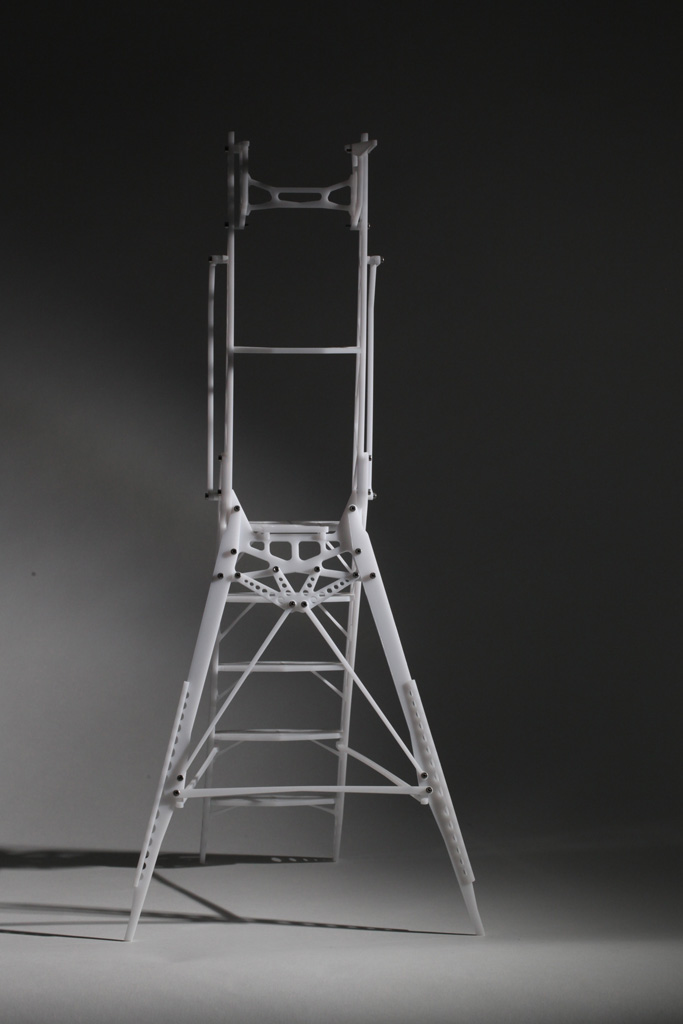

In an earlier post (https://natchard.com/2011/10/02/peepshow-ladders/) I showed a proposal for some ladders to site a peepshow at a high horizon so that it could incorporate the rest of the items in the room as part of the content of the peepshow. The pictures in that post were of the Mk. 1 ladder, a sketch model. The subsequent two versions developed the ladder design so that it could be cut out of standard sheet sizes economically and have a little more stability and stiffness. Here are the three main versions.

Mk.1 Ladder (Nat Chard)

Mk.1 Ladder (Nat Chard)

Mk.2 Ladder (Nat Chard)

Mk.2 Ladder (Nat Chard)

Mk.2 Ladder (Nat Chard)

Mk.3 Ladder (Nat Chard)

Mk.3 Ladder (Nat Chard)

Mk.3 Ladder (Nat Chard)

House

November 9, 2011
House
Leave a comment

Winnipeg House

Early sketch model for a house in Winnipeg working from Instrument Three. An interior steel frame supports a series of hanging vessels that hold the wet services and one bedroom. There was a particular reason for the sobriety of this model – the next versions warmed up considerably.

Winnipeg House

Instrument Five Models

November 7, 2011
Drawing instruments
Leave a comment

Instrument Five Model

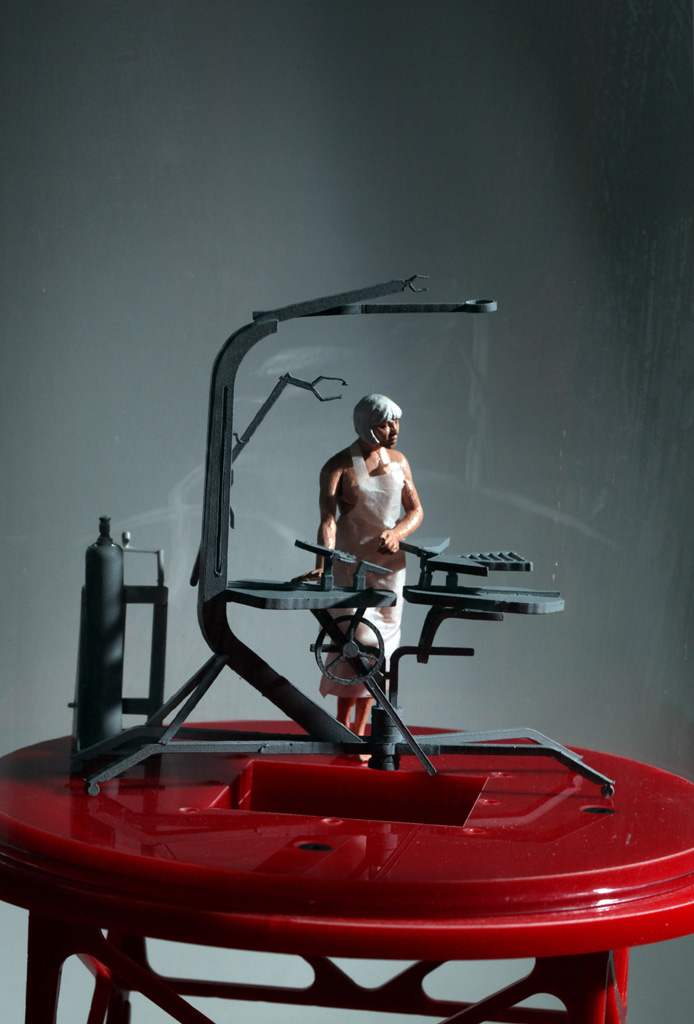

The various versions of Instrument Five have models under a glass dome so that the person drawing is reminded of the content being discussed by each instrument. Each model shows part of the content of a later version of the bird automata test track, and the models and figures were designed and built by Samantha (Sam) Lynch and Jason Campbell while I was working on the instruments. The image above (and below in detail) is the workbench / operating table to assemble and maintain the automaton birds. It was made by Sam.

Instrument Five Model

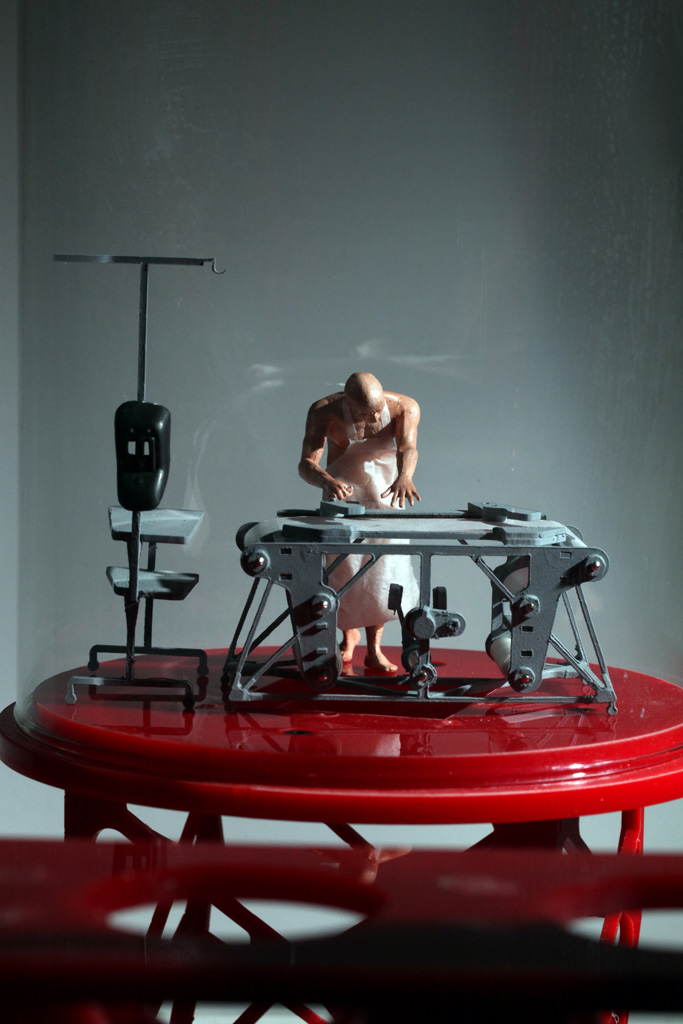

The second model (below) by Jason shows the tracking station where all the bird’s movements during a test flight are recorded.

Instrument Five Model

Instrument Five Model

The glass domes protect the models from the flying paint.

Instrument Five Model in position (Nat Chard)

The image above is a reminder of the model location in Instrument Five.

The models are built at 1:24. The figures are made up from a German kit of body parts that allow you to pick and choose from a variety of heads, torsos and limbs. They come naked, which seemed better than the available models with clothes – either military figures or estate agents. They looked a bit strange completely naked so Sam made some work aprons for them. If you think they look a bit pervy, compare them with the suggested assembly on the cover of the kit box.

Natural poses and clothes...

Some of the body parts

Here is one of the plastic mouldings from the female kit.

In Progress – Instrument Eight

November 3, 2011
Drawing instruments
Leave a comment

Instrument Eight, in progress (Nat Chard)

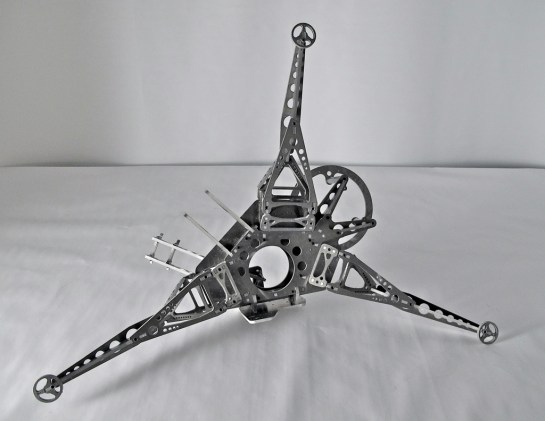

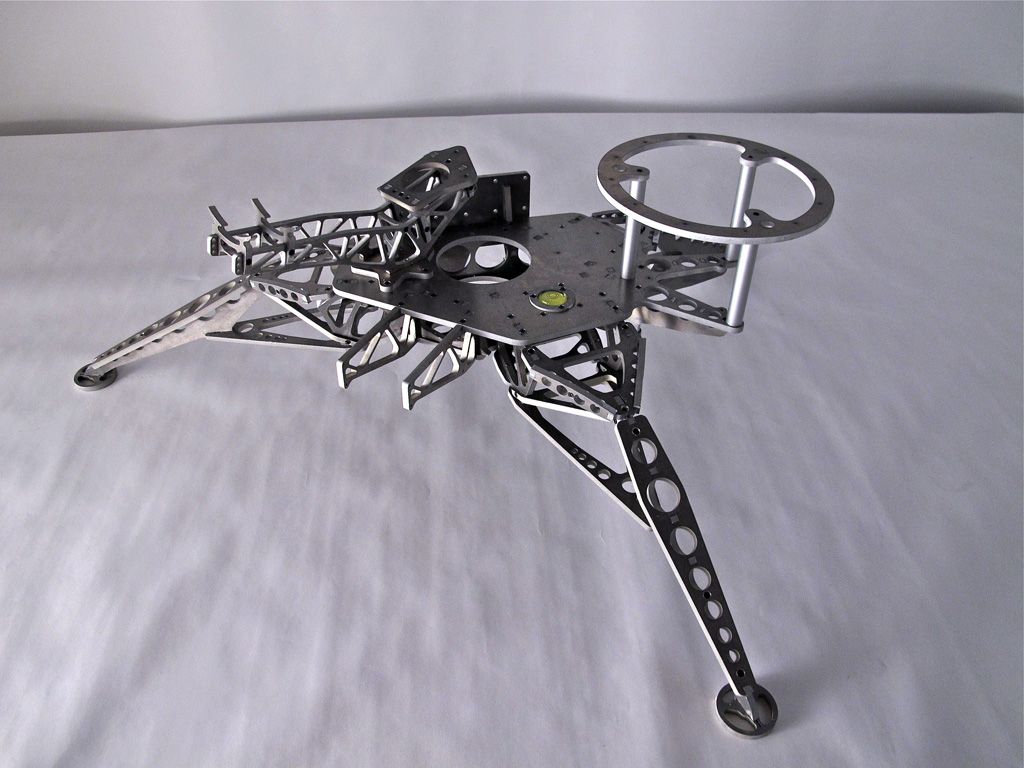

I have started working on a new series of instruments. This is the first chassis of (probably) four instruments, two of which are developments of Instrument Seven and two of which ask for more direct engagement. They incorporate some simple analogue computers to drive architectural models – architectural automata.

Instrument Eight, in progress (Nat Chard)

They are made from quarter inch (6.5mm) aluminium plate. I had the pieces waterjet cut. All the joints are slotted for structural integrity and are held together by bolts. The cutting is slightly off so all the joints need to be filed to get the pieces to fit – better than too loose I suppose. The chassis is much stronger than the acrylic ones I built for instruments four to seven, to the extent that I can comfortably stand on this one without it complaining. It is also much more resistant to breakage from knocks. I will tell the story as the thing develops. The design of the chassis is a development of that for Instrument Seven. It has a slightly different geometry and there are no interchangeable parts.

Instrument Eight, in progress (Nat Chard)
