Blast Deflector

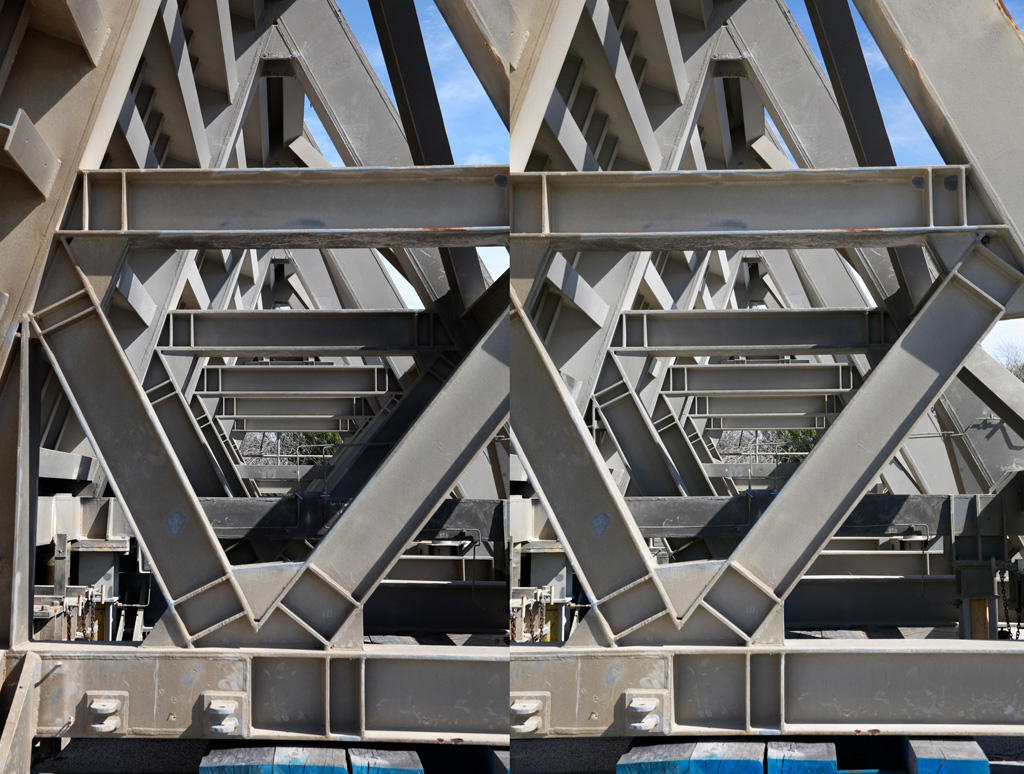

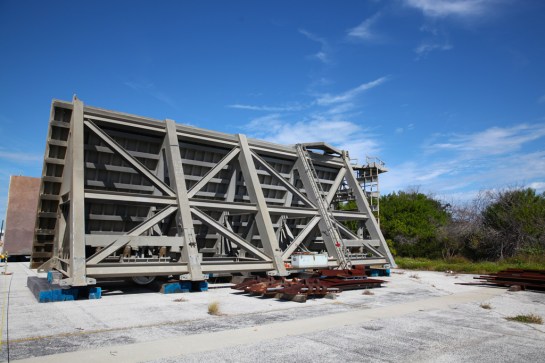

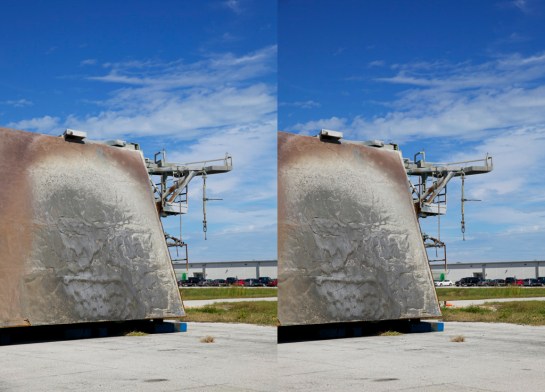

Scorch marks on the blast deflector witness the heat and force from the space shuttle rocket motors. The structure behind the deflector is shown below. The deflector fills the gap between the hole in the portable pad and the flame trench.
